50l Polymer reactor chemical glass reactor

50l Polymer reactor chemical glass reactor

Its 50 - liter volume is appropriate for both medium - scale production and research - based experiments. Made from high - quality glass, the device provides exceptional chemical stability and can resist a range of corrosive agents without degradation.

Overview
Related Products

Product Description

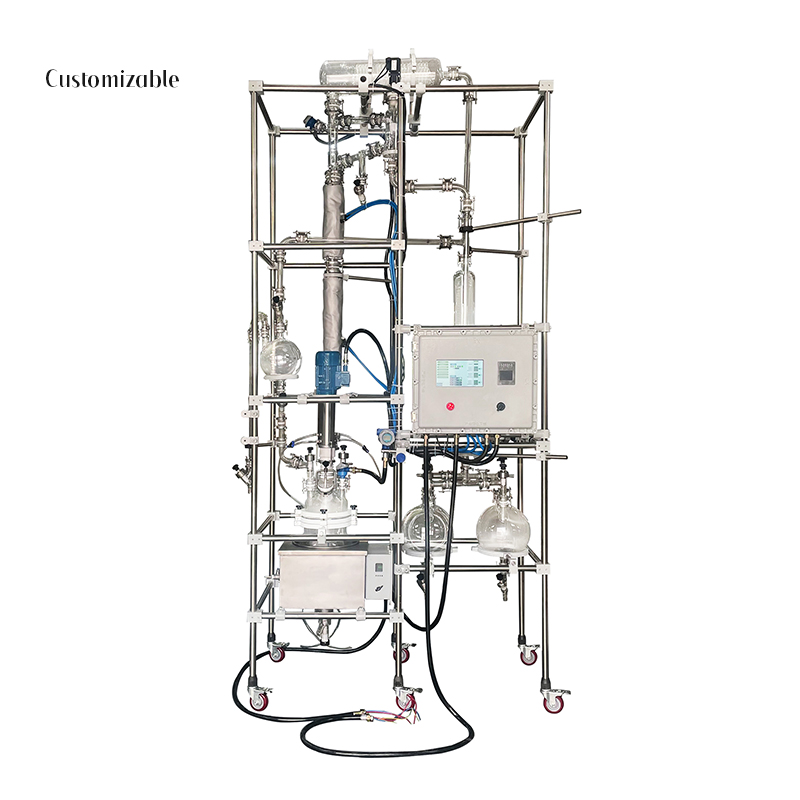

50l Polymer reactor chemical glass reactor details

50l Polymer reactor chemical glass reactor factory

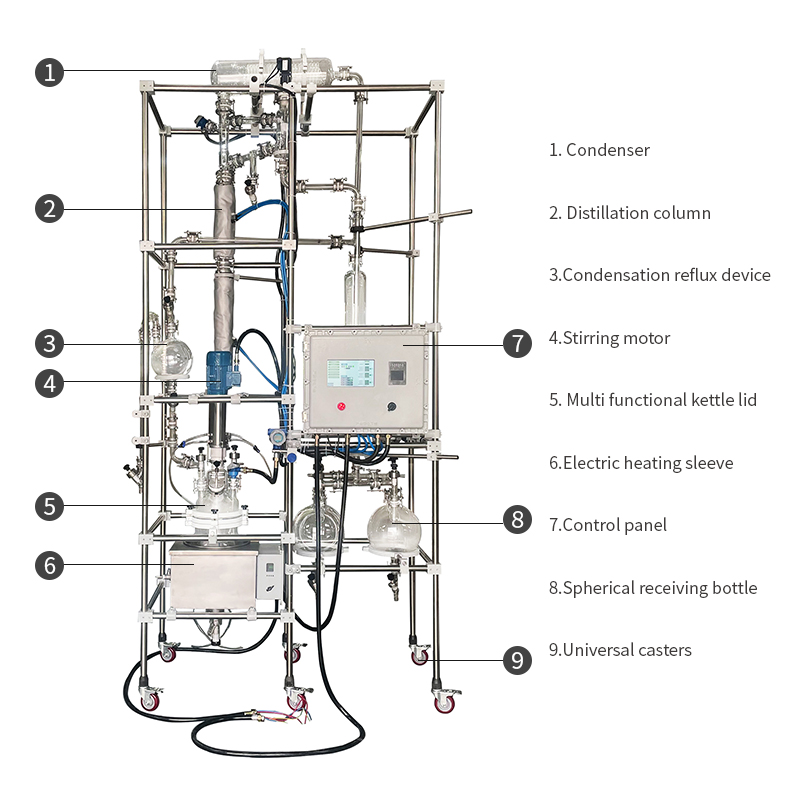

Rectifying glass reactor is widely used in the experiment and production of chemistry, fine chemical industry and new material synthesis of biopharmaceutical industry. The product can be used as a system device together with the circulating water multi-purpose vacuum pump, low temperature coolant circulating pump and circulating oil bath pot, or used in pilot production.Product PrincipleThe materials in the reactor can be heated or cooled at a constant temperature by injecting a constant temperature (high or low temperature) hot solution or coolant into the oil bath (tank), and agitation can be provided. This equipment can carry out vacuum stirring reaction, distillation and concentration reaction, separation and extraction, reaction and heating experiment. We can pass tap water through the condensation coil in the oil bath pot to achieve the effect of rapid cooling. The material can react in the reactor and control the evaporation and reflux of the reaction solution. After the reaction, the material can be discharged from the opening of the reactor cover or the lower outlet of the bottom of the boiler, The operation is extremely convenient.

Product Paramenters

Product model	XC-5L	XC-10L	XC-20L	XC-30L	XC-50L	XC-80L	XC-100L	XC-150L	XC-200L
Volume(L)	5	10	20	30	50	80	100	150	200
Jacket volume(L)	1.5	3	6	10	16	24	30	45	60
Neck No. on lid	5	6	6	6	6	6	6	6	6
Lid diameter(mm)	180	265	265	265	265	340	340	340	340
External diameter of the inner vessel(mm)	180	230	290	330	365	410	460	550	600
External diameter of the outer vessel(mm)	230	290	330	365	410	460	500	600	650
Vessel height(mm)	400	450	550	730	850	950	950	980	1200
Motor power(W)	120	120	140	140	180	250	250	400	750
Vacuum degree(Mpa)	0.096	0.096	0.096	0.096	0.096	0.096	0.096	0.096	0.096
Rotation speed(rpm)	50-600	50-600	50-600	50-600	50-600	50-600	50-600	50-600	50-600
Torque(Ncm)	162	162	210	210	300	350	350	400	400
Power	220V/50Hz

Details Images

50l Polymer reactor chemical glass reactor manufacture

Related products

Customized 20L ultrasonic reactor , 80L three layer reactor with chiller , 10L chemical reactor with PLC control , 30L glassreactor with 2L manual lift filter reactor , explosion proof three layer lifting reactor , glass distillation reaction device ,50L lifting filter reactor, 50L double wall multifunctional reactor , 100L explosion proof complete of glass reactor , 20L vacuum suction filter , multifunctioal ultrasonic glass reactor , 200L double layer reactor with tail gas absorption device , 50L distillation column , PLC integrated control reaction device , 50L tail gas absorption device , distillation unit with wiped thin film evaporator , 50L single layer reaction kettle , 30L lifting filter , PLC integrated control reaction device , 1L lab grade rotary evaporator , 5L-50L pilot plant rotavapor , 10L-50L explosion proof evaporator , heating circulator , heating refrigeration circulator , low temperature circulator , ultrasonic cell crusher, super thermalstatic , industrial ultrasonic treatment equipment , hybridization oven , UV cross linker , homogenizer , dry bath , etc .

50l Polymer reactor chemical glass reactor supplier

Recommend Products

We would like to recommend our filter reactors and vacuum filters to you .

Our factory

Ningkai Instrument Co . Ltd is located in Nanjing , China , where own hundreds of universities and research institutes. And famous as its thousands of years long history culture. Profound culture and strong scientific research strength , provide sustainable and vigorous power for Ningkai development .Main products include Glass Reactor(single layer, double- layer and three- layer) , Rotary Evaporator , Short Path MolecularDistillation , Heating Circulators , Heating Refrigeration Circulator , Low Temperature Circulator , Ultrasonic Cell Crusher ,Industrial Ultrasonic Treatment Equipment , Ultrasonic Cleaning Machine , High(Low) Temperature Constant Temperature Trough , Hybridization Oven , UV Cross-linker , Flap Type Homogenizer , Dry Bath and etc . Ningkai Instrument has exported its products to Europe , South America , North America , Latin America , Asia , Australia , Middle East , Africa and etc . Providing technical support for tens of thousands organizations to solve problems within their research , special for university , research institutes, inspection agencies , industries and etc .

Our Advantages1. We have been in this line for about ten years , with rich experience in marketing , developing , researching , engineering ,etc.2. Different categories and series instruments for your selection .3. You will enoy the complete and good service from the start of order to the end of transaction .4. Our all products can be suppliable with cusotm made .5. We have our own glass factory and produce the glass you want .6. Strict quality control from incoming , assembly , soldering , maintainance , aging to the final shipping .7. Production ability: 200-300 sets per month , maximum annual output 4000 sets , minimum output 3000 sets .8. Engineering team presided over by professors level cheif engineer who has more than 10 years proctical working experience .Our PartnersPeking University , Tsinghua University , Nanjing University , Tianjing University , Qiangyang Chemical Industry Company , AppTec , EYELA , Toption , AUCMA , BT4 , HHitech , etc .
