It allows the precise separation of heat - sensitive materials, making it preferable for the production of high - value chemicals and fine chemicals, as well as the recovery of bioactive products.

Overview
Related Products

Product Description

Short path molecular distillation is a new technique that address the problems that conventional distillation techniques cannot solve . It can achieve liquid to liquid separation at very low vacuum degree according to the mean free path difference of molecular motion under the temperature of much lower than the liquid boiling point . Mainly the use of wiped system forcing liquid film evaporation or distillation of a highly efficient evaporation, distillation equipment , deodorization , degassing reaction and supporting heating , cooling and other unit operations , can be widely used in food , fine chemicals , electronic materials , plastic engineering and polymer purification , etc . The system also can be used to recover organic solvents from industrial effluents , especially for high boiling point , heat-sensitive , easily oxidized material separation and purification .

stainless steel 316 molecular distillation still molecular distillation manufacturer supplier

stainless steel 316 molecular distillation still molecular distillation manufacturer factory

Working principle

1. Operating temperature is far below the boiling point of the material . It has a big advantage in handling the thermal material , bio-acid fat , high boiling point and the materials which is not easy to steam out .
2. Heating time is extremely short , ordinary distillation need to take few hours in the process, but our short path distillation only need few minutes .
3. Low carbon dioxide , environmentally friendly and good for maintaining the material activity.
4. Belong to the physical separation process , can keep the natural state of the material from pollution .
5. Widely used in high value-added materials deodorization , bleaching , purification and separation .

Product features

①Evaporation tube body using G3.3 borosilicate glass: easy to observe the material under different conditions of pressure, temperature, flow and speed changes (such as material color, viscosity, film-forming effect, out of the critical point, etc.).
Help to get the best process parameters and experimental data.
②Can achieve precise temperature control: the maximum temperature of the evaporation tube system can reach 200 ℃, the maximum temperature within the jacket up to 300 ℃;
③Transmission system: The magnetic coupling transmission, to ensure high-speed operation of the evaporation cylinder pressure limit system up to 0.001mbar
④Film self-cleaning roller or scraper system through the centrifugal force of the material into a film to improve the evaporation efficiency and reduce operating time;
⑤High cleanliness: the material in the separation process only contact with glass and PTFE composite material, no other pollution.
⑥Ease of maintenance: all flange design, easy disassembly.
⑦According to customer requirements, evaporation tube specifications Φ60 ∽ Φ300 optional.

Product Paramenters

Model	evaporation tube specifications Φ (mm)	Evaporation tube heat transfer area(㎡)	Built-in cooling area (㎡)	Constant pressure feeding bottle( L)	Sample throughput (L/H)	Motor power (W)	motor speed (rpm)
NKDF-60	60	0.05	0.03	1	0.8	140	800
NKDF-80	80	0.1	0.25	1	1.5	140	800
NKDF-100	100	0.15	0.3	1	3	180	800
NKDF-150	150	0.25	0.4	2	5	180	800
NKDF-200	200	0.4	0.5	3	8	250	800
NKDF-300	300	0.6	0.8	5	10	250	500

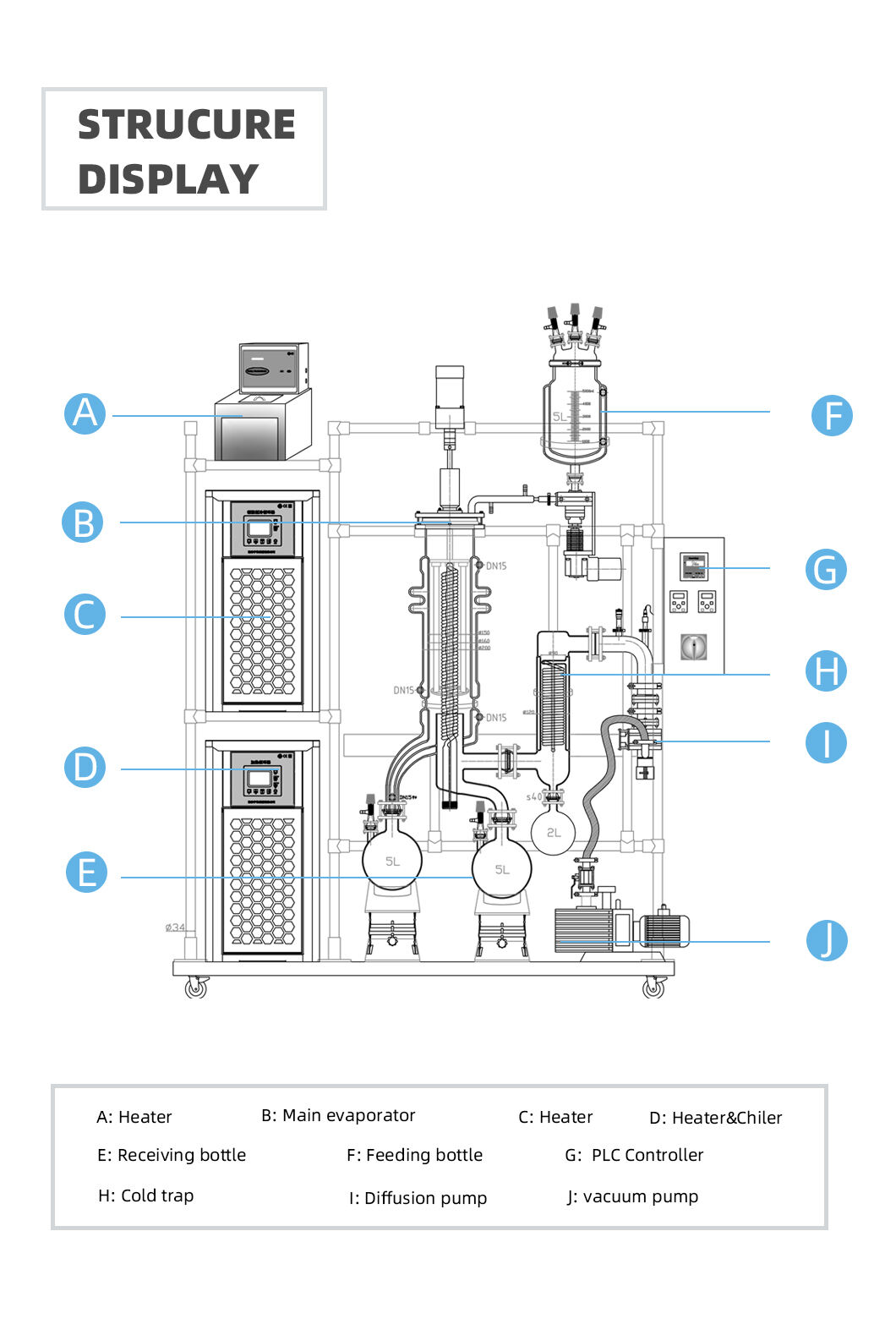

Detailed Images

stainless steel 316 molecular distillation still molecular distillation manufacturer details

Our Services & Strength

1. Offer a complete service system from the start of the order to the end of the order.2. We are truly factory , located in
Nanjing City , China , specific address is No 7 Qingxing Road, Guli Industrial Park , Jiangning District , Nanjing City , Jiangsu
Province , China . Company title(name): "Nanjing Ningkai Instrument Co.,Ltd " .
3. 100% timely delivery after payment paid , for chemical , pharmaceutical , biological , laboratory production, delivery for 7-15 days , for wholesaler , retailer , trade company , delivery for 15-28 days .
4. We offer the video technical support , directly talking with our technical engineers about your questions .
5. Shipping cost, we will offer the reasonable and desirable product shipping fees , no matter the air or sea , or maybe the
international express . By air: 5-7 days , By sea: 30 - 40 days .
6. We have our own glass factory, purely hand-made , can meet with our customers demands .
